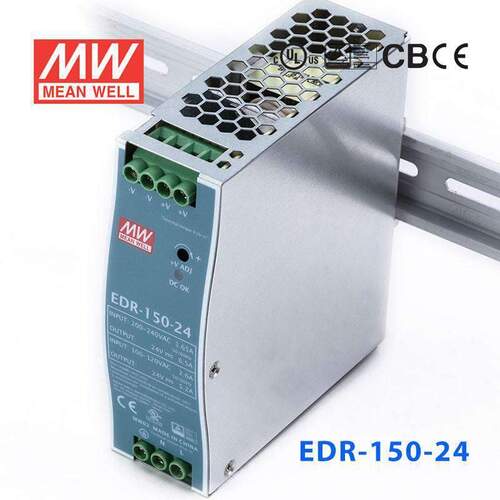

Mean well EDR-150-24

Name: Mean well EDR-150-24
Brand: SREE DHANAM AUTOMATION PVT. LTD.
Price: 1916.0 INR
Availability: InStock

Price 1916.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Mean well EDR-150-24 Specification

Operating Temperature
-20C ~ +60C

Output Type
Single

Rated Power
151.2W

Application
Industrial Automation Equipment, Control Panels

Working Temperature
-20C ~ +60C

Features
Ultra-slim, Cooling by Free Air Convection, LED Indicator for Power On

Output Current
6.3A

Noise Level
<50mVp-p

Rated Current
6.3A

Cooling Method
Free air convection

Connector Type
Screw terminal

Current Range
0 ~ 6.3A

Power Factor
>0.95 at 230VAC

Phase
Single Phase

Power Supply
AC-DC

Product Type
DIN Rail Power Supply

Output Power
151.2 W

Output Frequency
47 ~ 63Hz

Input Voltage
90 ~ 264VAC, 127 ~ 370VDC

Voltage Protection
Over Voltage, Over Load, Short Circuit, Over Temperature

Efficiency
88%

Material
Metal

Line Regulation
0.5%

Storage Temperature
-40C ~ +85C

Weight
680g

Insulation Resistance
>100M Ohm / 500VDC

Vibration Resistance
10~500Hz, 2G 10min./1cycle, period for 60 min. each along X, Y, Z axes

Cooling
Natural air convection

Setup, Rise Time
1000ms, 30ms/230VAC at full load

Ripple & Noise
<100mVp-p

Ambient Humidity
20~90% RH non-condensing

Overload Protection
110%~160% rated output power

Housing Material
Aluminum case

MTBF
>227.1K hours

Dimensions (W x H x D)
40mm x 125.2mm x 113.5mm

Hold-up Time
>30ms at full load 230VAC

Over Voltage Protection
27.6~32.4V

Mounting Type
DIN Rail

Output Voltage
24V DC

Mean well EDR-150-24 Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Paypal, Cash in Advance (CID), Cheque, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA)

Supply Ability
1 Number Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Free samples are available

Packaging Details
0.6Kg; 20pcs/13Kg/1.16CUFT Courier And Transport

Main Export Market(s)
Asia

Main Domestic Market
All India

About Mean well EDR-150-24

Meanwell smps edr-150-24 dinrail power supply,which is used in many applications, compact power supply 6amps 24vdc, designed based on european standard, is the most competitive power supply soultion for applications housing that enhances the unit's power dissipation. With working efficiency up to 92.5%, the entire series can operate at the ambient temperature between -20 and 70 under air CCconvection. It is equipped with constantmetal housing that enhances the unit's power dissipation. With working efficiency up to 92.5%, the entire series can operate at the ambient temperature between -20 and 70 under air CCconvection. It is equipped with constantUniversal AC input / Full range

Protections: Shortcircuit/ Overload / Over Voltage / Over temperature
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
UL 508 approved
100% full load burn-in test
2 years Warranty

Meanwell dinrail switch mode power supply we supply on pan india basis chennai, mumbai, coimbatore,delhi, bangalore, mangalore,mysore, bawana, hyderabad ,pune ,udhna,ahmedabad, vapi ,thane,surat ,gujarat ,faridabad,rajkot, thane, vasai,noida etc...

Efficient Power for Industrial Applications

Built for demanding environments, the EDR-150-24 delivers robust 24V DC power suited for industrial automation, control panels, and equipment requiring consistent energy. Its advanced protection features enhance device safety and longevity, while its ultra-slim design facilitates space-saving DIN rail mounting.

Advanced Protection and Reliability

Enjoy peace of mind with multiple protections including over voltage, overload, short circuit, and over temperature safeguards. An impressive mean time between failures (MTBF) exceeding 227,100 hours and insulation resistance over 100M Ohm ensure the EDR-150-24 withstands continuous use in challenging conditions.

Convenient Installation and Operation

Installation is straightforward with a space-efficient 40mm width and screw terminal connectors. The aluminum housing ensures durability, and the free air convection cooling system keeps maintenance minimal. An integrated LED power indicator allows for immediate status checks.

FAQ's of Mean well EDR-150-24 :

Q: How do I mount the Mean Well EDR-150-24 in my control panel?

A: The EDR-150-24 is designed for DIN rail mounting, which allows for quick and secure installation within standard industrial control panels. Simply snap the power supply onto a 35mm DIN rail and secure the electrical connections using the screw terminals.

Q: What protection features does the EDR-150-24 offer during operation?

A: This model provides over voltage protection (27.6-32.4V), overload protection (110%-160% rated output power), short circuit, and over temperature protection, ensuring your equipment is safeguarded against electrical faults and operational hazards.

Q: In what environments can I use the EDR-150-24 power supply?

A: The EDR-150-24 is suitable for use in a wide range of environments, with an operating temperature range of -20C to +60C and humidity tolerance from 20% to 90% RH (non-condensing). It also offers high vibration resistance and robust build quality, making it ideal for industrial settings.

Q: What benefits does natural air convection cooling provide?

A: Natural air convection eliminates the need for mechanical fans, reducing noise (<50mVp-p), minimizing maintenance, and improving overall reliability-especially important in industrial environments where dust and debris can impair fan-based systems.

Q: How does the LED power indicator assist during operation?

A: The built-in LED indicator immediately signals when the unit is powered on, providing clear visual feedback for status monitoring and facilitating quicker troubleshooting during operation or setup.
