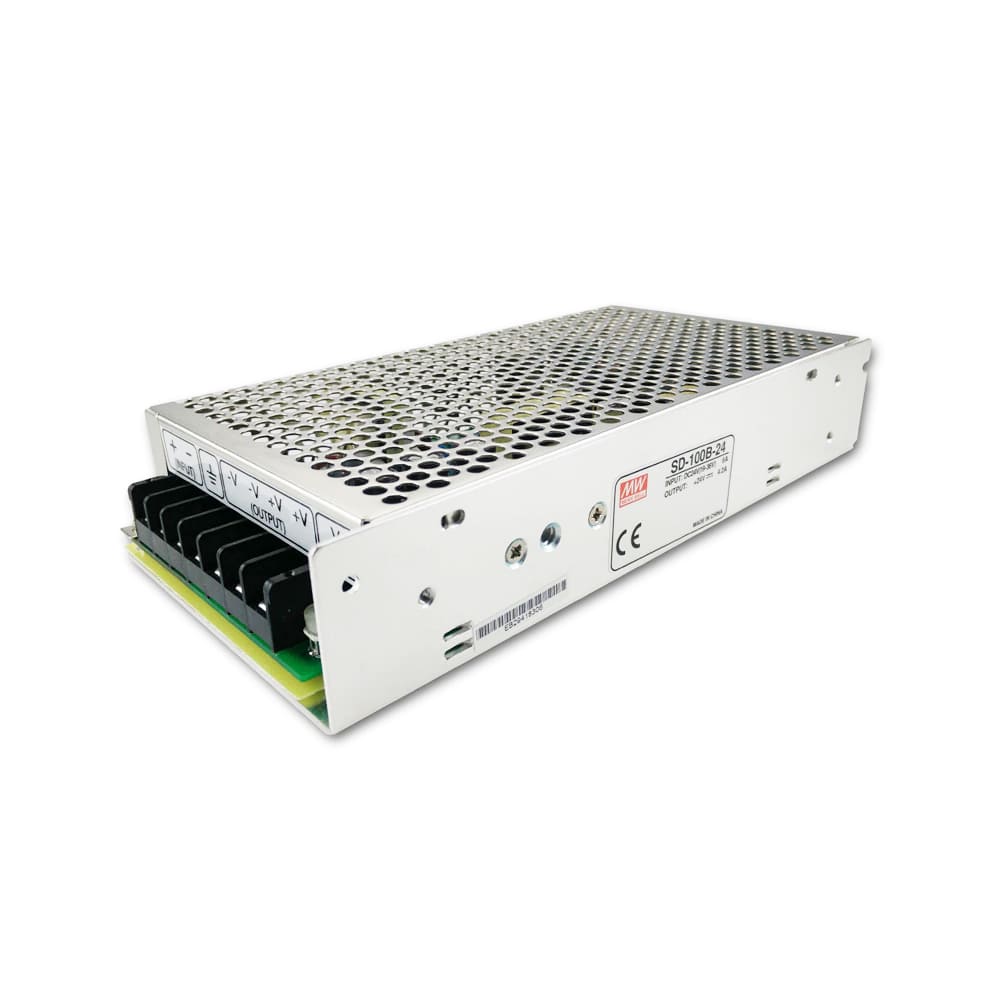

Mean well SD-100B-24

Name: Mean well SD-100B-24
Brand: SREE DHANAM AUTOMATION PVT. LTD.
Price: 2554.0 INR
Availability: InStock

Price 2554.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Mean well SD-100B-24 Specification

Rated Current
4.2A

Application
Industrial Equipment, Automation, Telecommunication

Cooling Method
Natural air convection

Rated Power
100W

Power Supply
DC to DC Converter

Output Current
4.2A

Phase
Single Phase

Working Temperature
-20°C to +70°C

Noise Level
Low

Current Range
0-4.2A

Connector Type
Screw terminals

Output Type
Single

Features
High reliability, Compact size, Built-in EMI Filter

Operating Temperature
-20°C to +70°C

Product Type
switch mode power supply

Output Power
100W

Output Frequency
DC Output

Input Voltage
Input: 10.8-13.2VDC, 21.6-26.4VDC, 43.2-52.8VDC

Voltage Protection
Overload, Over Voltage, Over Temperature, Short Circuit Protection

Efficiency
85%

Material
Metal Case

Line Regulation
±0.5%

Storage Temperature
-20°C to +85°C

Weight
0.63 kg

Mounting Type
Chassis Mount

Setup, Rise Time
1000ms, 30ms/24V at full load

Dimensions
159 x 97 x 38 mm (L x W x H)

Isolation Voltage
Input/Output: 1.5kVDC

Ripple & Noise
<100mVp-p

Hold-up Time
20ms at full load

Output Voltage
24V DC

Adjustable Output Voltage Range
21.6 ~ 28.8V

Remote ON/OFF Control
Yes

Input Range
19~36VDC

Mean well SD-100B-24 Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
1 Number Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Free samples are available

Packaging Details
0.86Kg; 16pcs/14.5Kg/0.95CUFT

Main Export Market(s)
Asia

Main Domestic Market
All India

Mean well SD-100B-24 About

meanwell smps triple output smps,we are distributor, dealer,supplier in india. SD-100B-24 used in so many applications, combine dual dc output in 1single unit will make the two in one. which compact the dual output in single smps. we have dual output in diffrent combinations 5v,12vdc & 12v,24vdc & 24v5v etc, even in diffrent ampere ratings...

2:1 wide input range

Protections: Short circuit / overload / Over voltage
1500VAC I/O isolation
Built-in EMI filiter, low ripple noise
100% full load burn-in test
24V and 48V input voltage design refer to LVD
low cost
high reliability
2 year warranty

Meanwell smps,distributor,dealer,supplier we supply on pan india basis chennai, mumbai, coimbatore ,delhi, bangalore, hyderabad,noida,pune ,ahmedabad,new delhi,vapi ,surat ,gujarat,ghaziabad, ,faridabad,rajkot, thane, vasai,bawana,udhna etc...

Versatile Industrial Power Solution

The Mean Well SD-100B-24 excels as a DC to DC converter that supports diverse industrial, automation, and telecommunication needs. Its comprehensive voltage and current protection, compact size, and ability to handle variable environments make it perfect for demanding installations where reliability is critical.

Advanced Protection and Control Features

Equipped with overload, over voltage, over temperature, and short circuit protection, this power supply ensures stable operation and safety. The inclusion of remote ON/OFF control streamlines integration and management, making system interactions more efficient and user-friendly.

Designed for Rugged Environments

Housed in a durable metal chassis, the SD-100B-24 operates reliably within a broad temperature range from -20C to +70C, and supports both rugged and temperature-sensitive setups. Its efficient natural air convection cooling and compact footprint further support space-conscious industrial designs.

FAQs of Mean well SD-100B-24:

Q: How can I adjust the output voltage of the Mean Well SD-100B-24?

A: The output voltage of the SD-100B-24 can be adjusted within the range of 21.6V to 28.8V. This adjustment is typically performed via the onboard potentiometer, allowing precise tailoring to your applications requirements.

Q: What are the key protection features built into this DC-DC converter?

A: This unit includes overload, over voltage, over temperature, and short circuit protection. These safeguards help ensure operational reliability and protect connected equipment from potential electrical faults.

Q: Where is the Mean Well SD-100B-24 commonly used?

A: This power supply is widely used in industrial equipment, automation systems, and telecommunication applications. Its robust design and reliable power delivery make it suitable for environments requiring durable, consistent power solutions.

Q: What is the process for mounting the SD-100B-24 in my system?

A: The SD-100B-24 is designed for chassis mounting. Secure the unit using the mounting holes provided on the casing, connect input and output wires via screw terminals, and ensure proper ventilation for optimal airflow.

Q: When should I use the remote ON/OFF control feature?

A: Remote ON/OFF control is beneficial when you need to manage the power supply remotely or integrate automated power management into your system. This feature enhances flexibility and convenience in system operations.

Q: What are the benefits of using natural air convection as the cooling method?

A: Natural air convection provides silent, maintenance-free cooling without moving parts, enhancing the units reliability and longevity, especially in industrial environments where dust and debris can affect fan-based cooling systems.
