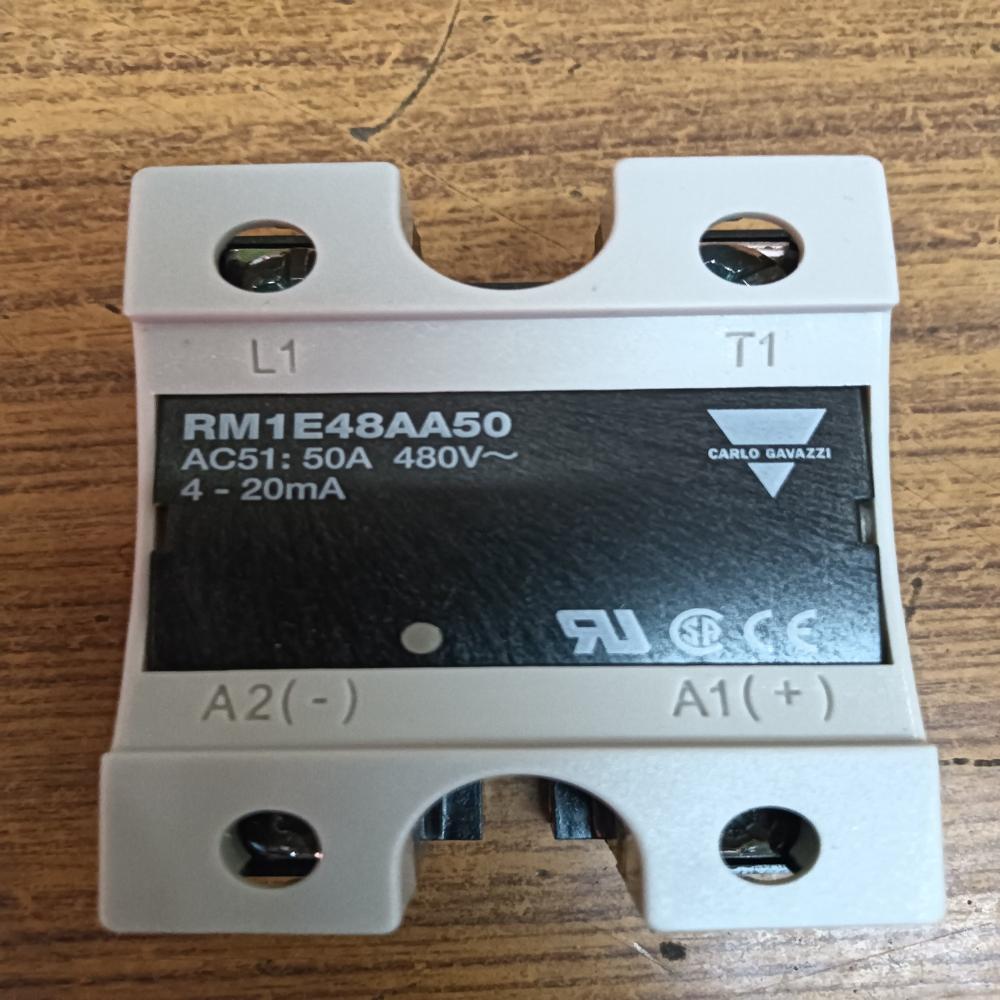

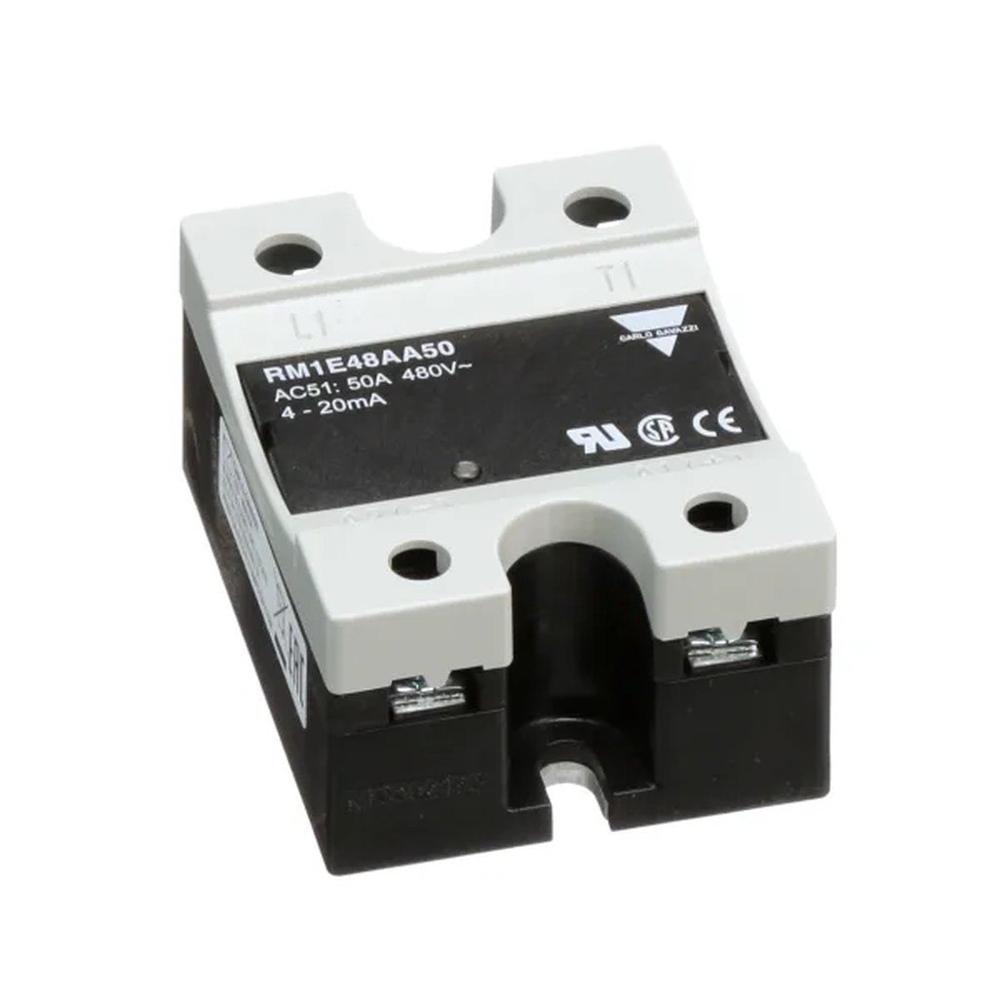

4-20 mAmps Solid State Relay

Name: 4-20 mAmps Solid State Relay
Brand: SREE DHANAM AUTOMATION PVT. LTD.
Price: 1500.0 INR
Availability: InStock

Price 1500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

4-20 mAmps Solid State Relay Specification

Working Temperature
-20C to +60C Celsius (oC)

Contact Material
Semiconductor/Thyristor

Ambient Temperature
-30C to +70C Celsius (oC)

Protect Feature
Overcurrent, overvoltage, surge suppression

Power Consumption
< 2W Watt (W)

Contact Resistance
< 50 m Milliohm (m)

Product Type
Solid State Relay

Insulation Resistance
>100 M (at 500 VDC)

Theory
Solid State Relay

Usage
Industrial automation, PLC output, process control applications

Contact Load
Up to 10A at 220V AC (typical)

Terminal Type
Screw terminal

Rated Voltage
220 V Volt (V)

Supply Terminal
Input: 4-20 mA DC, Output: 24-380 VAC (typical)

Color
Black/White

Dimension (L*W*H)
Approx. 60 x 45 x 23 mm Millimeter (mm)

Weight
Approx. 150 g Grams (g)

Load Type
Resistive & moderate inductive loads

Response Time (on/off)
10 ms

Min. Load Current
50 mA

Housing Material
Flame retardant ABS/Polycarbonate

Input Signal
4-20 mA DC current loop

Switching Method
Zero-cross trigger

Isolation
Photocoupler isolation

Humidity Range
5% to 90% RH (non-condensing)

Output Type
AC Load switching

Voltage Tolerance
+/- 10% of rated voltage

Mounting Type
Panel & DIN rail mountable

4-20 mAmps Solid State Relay Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1000 Pieces Per Month

Delivery Time
1-7 Days

About 4-20 mAmps Solid State Relay

CARLOGAVAZZI SSR industrial, 1-phase relay with antiparallel thyristor output is the most widely used industrial SSR due to its multiple application
possibilities. The relay can be used for resistive, inductive and capacitive loads. The zero switching relay switches ON when the
sinusoidal curve crosses zero and switches OFF when the
current crosses zero. The instant-on relay with DC control input can be used for phase control. The built- in varistor secures transient
protection for the heavy industrial applications, and the LED indicates the status of the control input. The clip- on cover is securing touch protection to IP 20. Protected output terminals can handle cables up to 16mm2

Specifications are subject to change without notice (01.05.2025) 1RM1A, RM1B

Zero switching (RM1A) or instant-on
switching (RM1B) AC Solid State Relay
Direct copper bonding (DCB) technology
LED indication
Built-in varistor
Clip-on IP 20 protection cover
Self-lifting terminals
Housing free of moulding mass
2 input ranges: 3-32* VDC and 20-280VAC/22-48VDC
Operational ratings: Up to 100AACrms and 600VACrms
Blocking voltage: Up to 1400Vp
Opto-isolation: > 4000VACrms

Product Description

CARLOGAVAZZI SSR we deals smps in pan india like chennai,coimbatore,bawana, bangalore ,mysore ,hyderabad ,nashik ,secunderabad,mumbai,delhi,noida,gurgaon,vasai, thane,ghaziabad ,faridabad,Haridwar,uttarkhand,dehradun,kolkata,uttarkhand

ahmedabad,rajkot,surat,indore,vapi etc

Precision Control for Industrial Automation

This solid state relay efficiently bridges control systems and high-voltage AC loads using a 420 mA input current loop. Its quick response time enhances process automation and PLC operation where timely switching is crucial. With minimal power consumption and high reliability, it meets the exacting demands of modern industrial environments.

Flexible Mounting and Rugged Design

Engineered for both panel and DIN rail installations, this relay fits into standard enclosures seamlessly. The flame-retardant ABS/polycarbonate housing ensures safety in harsh conditions. It withstands significant temperature variations and humidity, benefiting facilities that require robust operational components for long-lasting performance.

Optimized for Reliable Switching

Featuring zero-cross trigger and photocoupler isolation, this relay minimizes electrical noise and provides high dielectric strength. The relay supports switching for resistive and moderate inductive loads, offering up to 10A at 220V AC. Overcurrent, overvoltage, and surge protection features ensure your systems stay secure during operation.

FAQs of 4-20 mAmps Solid State Relay:

Q: How does the 420 mA Solid State Relay improve industrial automation processes?

A: The solid state relay enables precise and rapid switching of AC loads in response to an industry-standard 420 mA control signal, optimizing process control, enhancing reliability, and reducing maintenance due to its lack of moving parts.

Q: What types of loads are suitable for this solid state relay?

A: This relay is designed for switching resistive loads (like heaters and lights) and moderate inductive loads (such as small motors) up to 10A at 220V AC. It is ideal for applications in industrial automation and process control environments.

Q: When is the best occasion to use a zero-cross trigger SSR in process applications?

A: Zero-cross trigger SSRs are best used when you need to minimize electrical noise and voltage spikes during switching, which is crucial in environments with sensitive equipment and when handling large resistive or moderate inductive loads.

Q: Where can this relay be mounted for optimal use?

A: This solid state relay can be mounted easily on DIN rails or flat panels, fitting into standard industrial enclosures for both new and retrofit installations across manufacturing facilities, PLC cabinets, and process control panels.

Q: What is the process for wiring the 420 mA input and the AC output?

A: Connect the input terminals to your process controllers 420 mA current loop, ensuring polarity is correct. The AC load should be wired to the output terminals, taking care to observe the specified voltage and current ratings. Use screw terminals for secure connections.

Q: How does photocoupler isolation benefit systems using this relay?

A: Photocoupler isolation separates the low-voltage control side from the high-voltage load side, reducing the risk of electrical interference and protecting sensitive PLC or control electronics from voltage transients and surges.

Q: What advantages does this SSR offer over traditional electromagnetic relays?

A: Unlike mechanical relays, this SSR has no moving parts, providing faster response (10 ms), silent operation, extended lifespan, excellent resistance to vibration, and lower maintenancemaking it highly dependable for continuous industrial use.
