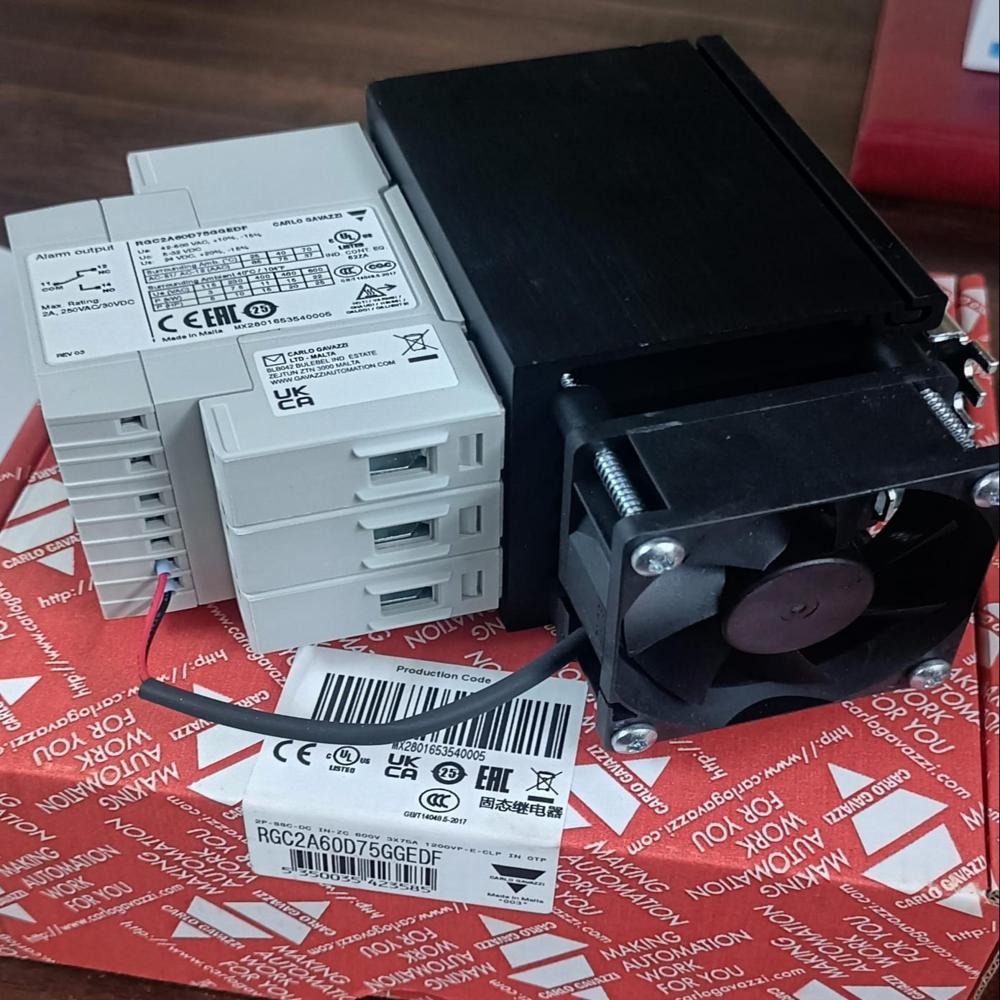

Analog DinRail Mounting SSR

Name: Analog DinRail Mounting SSR
Brand: SREE DHANAM AUTOMATION PVT. LTD.
Price: 2900.0 INR
Availability: InStock

Price 2900.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Analog DinRail Mounting SSR Specification

Power Consumption
Less than 1W Watt (W)

Working Temperature
-10C to +60C Celsius (oC)

Contact Form
SPST-NO

Protect Feature
Overload, Overvoltage Protection

Contact Resistance
<100 m Milliohm (m)

Contact Material
Copper Alloy, Silver Plated

Ambient Temperature
-20C to +70C Celsius (oC)

Coil Power
Analog 0-10V/4-20mA control

Product Type
Analog Din Rail Mounting SSR

Insulation Resistance
>1000 M at 500V DC

Theory
Solid State Relay

Usage
Industrial Automation, Motor Controls, HVAC

Contact Load
Up to 15A

Terminal Type
Screw Terminal

Rated Voltage
24V to 230V AC/DC Volt (V)

Supply Terminal
DIN Rail Mount

Color
Black/White

Dimension (L*W*H)
87mm x 22mm x 67mm Millimeter (mm)

Weight
Approx. 180g Grams (g)

IP Rating
IP20

Shock Resistance
Up to 100g (IEC 60068-2-27)

Output Type
Triac

Humidity Range
5% to 95% RH, Non-condensing

Input Control Signal
0-10V DC / 4-20mA Analog

Mounting Type
DIN Rail (35mm)

Indicator
LED for status

Vibration Resistance
Up to 10g (IEC 60068-2-6)

Panel Cutout
Standard DIN Mount Slot

Cooling
Natural Air Cooled

Surge Suppression
Integrated RC Snubber

Life Expectancy
>10 million operations

Enclosure Material
High Strength Polycarbonate

Frequency Range
47Hz to 63Hz

Analog DinRail Mounting SSR Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1000 Pieces Per Month

Delivery Time
1-7 Days

About Analog DinRail Mounting SSR

carlogavazzi analog ssr RGC1P is a series of solid state contactors (with integrated heatsink) that give the possibility to control output
power of 1-phase loads with an analog control input.
Input types cover a wide range of current and voltage
ranges. Local setting by an external potentiometer is
possible. Switching modes, selectable through a front knob,
allow phase angle control, full cycle control, advanced full
cycle control specific for short wave infrared heaters and
soft starting for limiting inrush current of loads having a high

temperature coefficient. The output of the RGC1P is protected against overvoltages by means of an integrated varistor across the output. Two front LEDs indicate the status of the load and control.

CARLOGAVAZZI Soft starters we deals smps in pan india like chennai,coimbatore,bawana, bangalore ,mysore ,hyderabad ,nashik ,secunderabad,mumbai,delhi,noida,gurgaon,vasai, thane,ghaziabad ,faridabad,Haridwar,uttarkhand,dehradun,kolkata,uttarkhand

ahmedabad,rajkot,surat,indore,vapi etc

Advanced Control Flexibility

This SSR accepts both 0-10V DC and 4-20mA analog input signals, providing compatibility with a wide range of industrial automation and process control equipment. The phase control via analog input allows precise modulation of output, making it ideal for applications where variable speed or load control is required.

Durable and Reliable Construction

Encased in high-strength polycarbonate, this solid state relay withstands harsh industrial conditions, including extreme temperature, high humidity, vibration, and shock. The integrated overload and overvoltage protection features further ensure longevity and operational safety, minimizing downtime in critical processes.

Effortless Installation and Operation

Featuring a standard 35mm DIN rail mount and screw terminals, installation is quick and straightforward. The LED indicator provides immediate visual feedback on relay status, while natural air cooling ensures quiet, energy-efficient operation. Its compact dimensions and standard DIN slot compatibility make integration seamless across a variety of industrial panels.

FAQs of Analog DinRail Mounting SSR:

Q: How do I install the analog DIN rail mounting SSR in my control panel?

A: The SSR is designed for effortless installation with a standard 35mm DIN rail mounting slot. Simply snap the relay onto the DIN rail and connect input, output, and supply terminals using the provided screw terminals. Ensure the relay is mounted in a well-ventilated panel for optimal natural air cooling.

Q: What input control signals are supported by this SSR?

A: This solid state relay supports both 0-10V DC and 4-20mA analog input control signals, providing compatibility with a wide variety of industrial controllers and automation systems.

Q: Where can I use this SSR in industrial settings?

A: The relay is suitable for industrial automation, motor controls, HVAC systems, and other applications requiring precise switching. Its rugged design allows it to perform reliably in demanding environments, such as factories and process plants.

Q: What are the protection features integrated into the SSR?

A: It includes overload and overvoltage protection, an integrated RC snubber for surge suppression, and a high-strength polycarbonate enclosure, safeguarding the relay, connected devices, and users from electrical hazards.

Q: How does the LED status indicator function?

A: The built-in LED indicator illuminates whenever the SSR is active, providing a clear visual signal of the relays operational status, which helps in quick diagnostics and monitoring.

Q: What are the primary benefits of using a solid state relay over a mechanical one?

A: Solid state relays have no moving parts, offering greater reliability, longer life expectancy (more than 10 million operations), faster switching (<10 ms operate time), and silent operation compared to traditional mechanical relays.

Q: When should I choose this SSR for my automation needs?

A: If your application demands high durability, rapid response, low maintenance, and compatibility with analog control signals, this SSR is an excellent choice for efficient and precise industrial switching.
